Android offers a number of personalization features to help developers customize many aspects of their mobile app user experience. One of these features is live wallpaper for Android.

Live wallpapers are animated. They don’t remain as static background images and have interactive features.

A live wallpaper for Android is usually used as a background on the home screen that changes over time or animates in some way. If you own an Android device, you’ve probably seen a couple of built-in live wallpapers.

Now, as a developer, you can also create and publish live wallpapers for Android. The process is not difficult. However, creating a live wallpaper that does not drain user’s device battery and is fascinating is something of a challenge.

But, in today’s Android application development tutorial, we’ll walk you through the process of creating a live wallpaper for Android that works well.

Let’s Get Started

Create a new project “Live Wallpaper”.

screenshot-from-2017-05-03-15_55_47

Set target Android device.

screenshot-from-2017-05-03-15_55_49

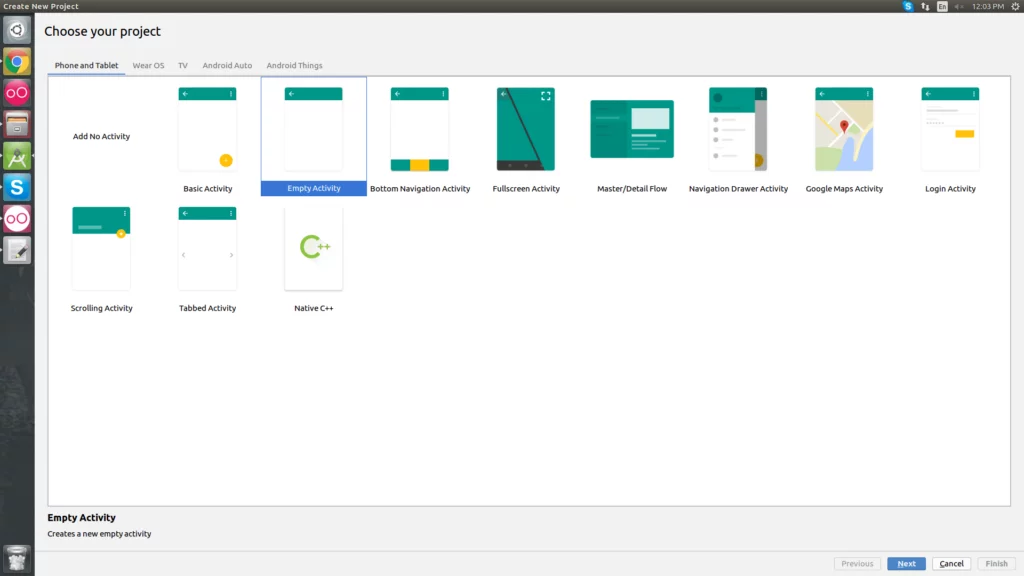

Add an Activity to mobile => Select Empty Activity.

screenshot-from-2017-05-03-15_55_57

Customize the activity.

screenshot-from-2017-05-03-15_56_00

Create Java class name “MyPoint”

package com.spaceo.livewallpaperdemo;

public class MyPoint {
    public  String text;
    public float x;
    public float y;

    public MyPoint(String text, float x, float y) {
        this.text = text;
        this.x = x;
        this.y = y;
    }
}

Create Java class name “MyPreferencesActivity”

package com.spaceo.livewallpaperdemo;

import android.os.Bundle;
import android.preference.Preference;
import android.preference.PreferenceActivity;
import android.widget.Toast;

public class MyPreferencesActivity extends PreferenceActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
addPreferencesFromResource(R.xml.prefs);

// add a validator to the "numberofCircles" preference so that it only
// accepts numbers
Preference circlePreference = getPreferenceScreen().findPreference("numberOfCircles");

// add the validator
circlePreference.setOnPreferenceChangeListener(numberCheckListener);
}

/**
* Checks that a preference is a valid numerical value
*/
Preference.OnPreferenceChangeListener numberCheckListener = new Preference.OnPreferenceChangeListener() {

@Override
public boolean onPreferenceChange(Preference preference, Object newValue) {
// check that the string is an integer
if (newValue != null && newValue.toString().length() > 0
&& newValue.toString().matches("\\d*")) {
return true;
}
// If now create a message to the user
Toast.makeText(MyPreferencesActivity.this, "Invalid Input",
Toast.LENGTH_SHORT).show();
return false;
}
};
}

MyWallpaperService.Java

package com.spaceo.livewallpaperdemo;

import android.content.SharedPreferences;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.os.Handler;
import android.preference.PreferenceManager;
import android.service.wallpaper.WallpaperService;
import android.view.MotionEvent;
import android.view.SurfaceHolder;

import java.util.ArrayList;
import java.util.List;

public class MyWallpaperService extends WallpaperService {

@Override
public Engine onCreateEngine() {
return new MyWallpaperEngine();
}

private class MyWallpaperEngine extends Engine {
private final Handler handler = new Handler();
private final Runnable drawRunner = new Runnable() {
@Override
public void run() {
draw();
}

};
private List<MyPoint> circles;
private Paint paint = new Paint();
private int width;
int height;
private boolean visible = true;
private int maxNumber;
private boolean touchEnabled;

public MyWallpaperEngine() {
SharedPreferences prefs = PreferenceManager
.getDefaultSharedPreferences(MyWallpaperService.this);
maxNumber = Integer
.valueOf(prefs.getString("numberOfCircles", "4"));
touchEnabled = prefs.getBoolean("touch", false);
circles = new ArrayList<MyPoint>();
paint.setAntiAlias(true);
paint.setColor(Color.WHITE);
paint.setStyle(Paint.Style.STROKE);
paint.setStrokeJoin(Paint.Join.ROUND);
paint.setStrokeWidth(10f);
handler.post(drawRunner);
}

@Override
public void onVisibilityChanged(boolean visible) {
this.visible = visible;
if (visible) {
handler.post(drawRunner);
} else {
handler.removeCallbacks(drawRunner);
}
}

@Override
public void onSurfaceDestroyed(SurfaceHolder holder) {
super.onSurfaceDestroyed(holder);
this.visible = false;
handler.removeCallbacks(drawRunner);
}

@Override
public void onSurfaceChanged(SurfaceHolder holder, int format,
int width, int height) {
this.width = width;
this.height = height;
super.onSurfaceChanged(holder, format, width, height);
}

@Override
public void onTouchEvent(MotionEvent event) {
if (touchEnabled) {

float x = event.getX();
float y = event.getY();
SurfaceHolder holder = getSurfaceHolder();
Canvas canvas = null;
try {
canvas = holder.lockCanvas();
if (canvas != null) {
canvas.drawColor(Color.BLACK);
circles.clear();
circles.add(new MyPoint(String.valueOf(circles.size() + 1), x, y));
drawCircles(canvas, circles);

}
} finally {
if (canvas != null)
holder.unlockCanvasAndPost(canvas);
}
super.onTouchEvent(event);
}
}

private void draw() {
SurfaceHolder holder = getSurfaceHolder();
Canvas canvas = null;
try {
canvas = holder.lockCanvas();
if (canvas != null) {
if (circles.size() >= maxNumber) {
circles.clear();
}
int x = (int) (width * Math.random());
int y = (int) (height * Math.random());
circles.add(new MyPoint(String.valueOf(circles.size() + 1),
x, y));
drawCircles(canvas, circles);
}
} finally {
if (canvas != null)
holder.unlockCanvasAndPost(canvas);
}
handler.removeCallbacks(drawRunner);
if (visible) {
handler.postDelayed(drawRunner, 5000);
}
}

// Surface view requires that all elements are drawn completely
private void drawCircles(Canvas canvas, List<MyPoint> circles) {
canvas.drawColor(Color.BLACK);
for (MyPoint point : circles) {
canvas.drawCircle(point.x, point.y, 20.0f, paint);
}
}
}
}

SetWallpaperActivity

package com.spaceo.livewallpaperdemo;

import android.app.Activity;
import android.app.WallpaperManager;
import android.content.ComponentName;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
public class SetWallpaperActivity extends Activity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}

public void onClick(View view) {
Intent intent = new Intent(
WallpaperManager.ACTION_CHANGE_LIVE_WALLPAPER);
intent.putExtra(WallpaperManager.EXTRA_LIVE_WALLPAPER_COMPONENT,
new ComponentName(this, MyWallpaperService.class));
startActivity(intent);
}
}

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest
xmlns:android="http://schemas.android.com/apk/res/android"
package="com.spaceo.livewallpaperdemo">

<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:roundIcon="@mipmap/ic_launcher_round"
android:theme="@style/AppTheme">

<service
android:name=".MyWallpaperService"
android:enabled="true"
android:label="Wallpaper Example"
android:permission="android.permission.BIND_WALLPAPER">
<intent-filter>
<action android:name="android.service.wallpaper.WallpaperService">
</action>
</intent-filter>

<meta-data
android:name="android.service.wallpaper"
android:resource="@xml/mywallpaper">
</meta-data>
</service>

<activity
android:name=".MyPreferencesActivity"
android:exported="true"
android:label="@string/app_name"
android:theme="@android:style/Theme.Light.WallpaperSettings">
</activity>

<activity
android:name=".SetWallpaperActivity"
android:label="@string/app_name"
android:theme="@android:style/Theme.Light.WallpaperSettings">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>

<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>

</application>

<uses-feature
android:name="android.software.live_wallpaper"
android:required="true">
</uses-feature>

</manifest>

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="vertical">

<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:onClick="onClick"
android:text="Click Here"/>

</LinearLayout>

res/xml/mywallpaper

<?xml version="1.0" encoding="utf-8"?>
<wallpaper
xmlns:android="http://schemas.android.com/apk/res/android"
android:description="@string/app_name"
android:settingsActivity="com.spaceo.livewallpaperdemo.MyPreferencesActivity"
android:thumbnail="@mipmap/ic_launcher"/>

res/xml/prefs

<?xml version="1.0" encoding="utf-8"?>
<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
<CheckBoxPreference android:key="touch"
android:title="Enable Touch"/>

<EditTextPreference android:key="numberOfCircles"
android:title="Number of Circles"/>
</PreferenceScreen>

And done!

Once you successfully implement this code, you can easily create live wallpaper for Android.

Remember, live wallpapers are a useful way to expand your app beyond typical boundaries. However, while making the live wallpaper, make sure to render to the screen so that the user’s experience with their device does not suffer. And if you still face difficulty, you can consult with Android app development company to make your live wallpaper work smoothly in Android device.

Get a free copy of Android Live Wallpaper Demo from Github.
